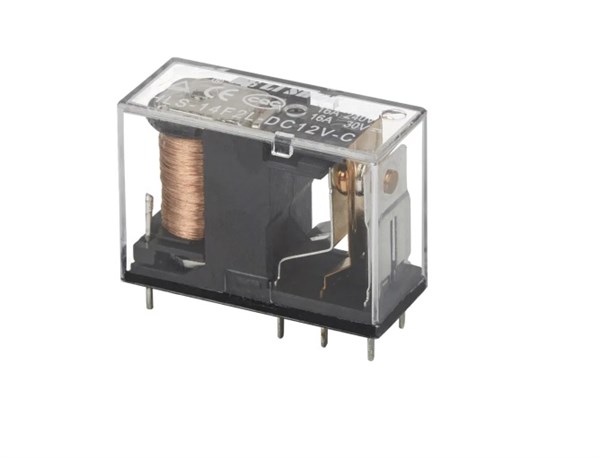

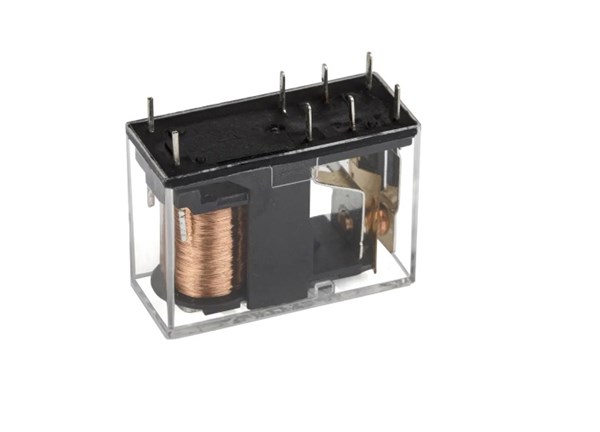

Ürün Özelliği
|
Contact Form |
1A /1C |
|
Contact Material |
Ag Alloy |
|
Contact Ratings |
16A 240VAC/16A 30VDC |
|
Max Switching Voltage |
250VAC/110VDC |
|
Max Switching Current |
16A |
|
Max Switching Power |
4000VA/480W |
|
Initial Contact Resistance |
100m Ω Max at6VDC 1A |
|
Life Expectancy Electrical |
100,000 Operations (rated load) |
|
Life Expectancy Mechanical |
10,000,000 Operations (no load) |
GENERAL DATA :
|
Insulation Resistance |
1000M Ω Min at500VDC |
|
|
Dielectric Strength Between Open Contacts |
1000VAC 50-60HZ( 1 minute) |
|
|
Dielectric Strength Between Contacts And Coil |
5000VAC 50-60HZ( 1 minute) |
|
|
Operate Time |
15ms max |
|
|
Release Time |
8ms max |
|
|
Ambient Temperature |
-30 ℃ to+70 ℃ |
|
|
Shock Resistance |
Malfunction |
10G |
|
Destruction |
100G |
|
|
Vibration Resistance |
10-55Hz,1.5mm double amplitude |
|
|
Ambient humidity |
20-85% RH |
|
|
Weight |
Approx 13g |
|
|
Safety Standard |
TUV CE CQC |
|
COIL DATA: (@20 ℃ )
|
Rated Voltage (VDC) |
Coil Resistance Ω ( ± 10% ) |
Max Operate Voltage (VDC) |
Min Release Voltage(VDC) |
Max Applied Voltage (VDC) |
|
|
0.53W |
0.72W |
||||
|
3 |
17 |
12.5 |
2.4 |
0.15 |
3.9 |
|
5 |
50 |
36 |
4 |
0.25 |
6.5 |
|
6 |
68 |
50 |
4.8 |
0.3 |
7.8 |
|
9 |
155 |
115 |
7.2 |
0.45 |
11.7 |
|
12 |
270 |
200 |
9.6 |
0.6 |
15.6 |
|
24 |
1100 |
820 |
19.2 |
1.2 |
31.2 |
|
48 |
4400 |
3300 |
38.4 |
2.4 |
62.4 |
PC Board Layout & Wiring Diagram (Bottom View)
